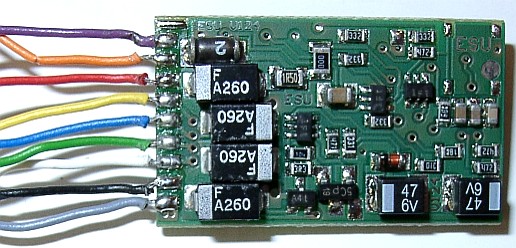

Die Anschlüsse am Lopi ohne Schutzhülle



Kabelfarben von oben -> unten

violett         f2
orange        Motoranschluss rechts
rot              Schienenanschluss 2
gelb            Licht hinten
blau            gemeinsamer Leiter (+ Pol)
grün            f1
weiß           Licht vorne
schwarz      Schienenanschluss 1
grau            Motoranschluss links
